DIY Thermal Imaging Camera

Step up your diagnostic game with the TC004 SE - a reliable thermal camera designed for locating and tackling industrial, electrical, building, HVAC, and automotive problems with confidence. With an impressive battery life of up to 21 hours (at low brightness), the camera ensures all-day use, so you’re always ready when you need it. Its ability to record videos allows you to monitor maintenance history and reassure your customers that systems are functioning safely.

  • Have questions? Ask an expert
View full details
Skip to product information
Features
  • All Day Battery Life
  • Video Capture
  • Built in 32GB Storage
  • 4x Digital Zoom
  • PC Image Analysis
  • 256x192 Resolution, 25Hz Refresh Rate
  • 1/4-20 Screw Mount
  • Built-in LED Light
Learn More
Warranty & Updates
  • 1 Year Warranty
Resources
  • WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
Hardware
System
Operating System
Battery Capacity
Display Screen
Operating Voltage
Charging Time
Battery Life
Storage
LED Flashlight
Imaging
Calibration Temperature Measurement Distance
Identification Distance
Recognition Distance
Detection Distance
Measurement Accuracy
Infrared Light Resolution
Focal Range
FOV
Spectral Range
NETD
Temperature Resolution
Frame Rate
AI Algorithm
Image Algorithm
Functions
Measurement Range
Professional Function
Digital Zoom
Image Modes
Measuring Modes
Video Recording
Video Transfer via USB
WIFI
PC-Based Analysis Software
Visible Light Camera Lens
Pseudo Color Bar
High/low temperature alarms
Automatic Power-off Time
Temperature Units
Other
Operating Temperature
Tripod Screw Hole
Drop, Impact, and Vibration
IP Rating
Certifications
Gross Weight (g)
Device Weight (g)
Package Size (mm)
Languages Supported
Updates

Linux
Standalone use/Windows devices
5300mAh
2.8 inch, 320x240 screen
5V
4h
16h (High brightness) 21h (Low brightness)
32 GB
True

0.2m~4m
0.1~40m
40~80m
80~320m
±2°C or ±2%
256x192
3.2mm
56°×42°
8 – 14μm
<40mK
0.1℃
25Hz

-20 to 450 °C (-4 to 842℉)
NA
1x/2x/4x
Thermal Imaging
Center spot/hot spot/cold spot
Supports image analysis with PC
10 colors (iron red, white hot, black hot, arctic, rainbow, red hot, medical, jungle, golden red, shimmer, aureate)
5 mins, 10 mins, 20 mins, Off
Celsius, Fahrenheit, Kelvin

-10°C to +50°C
2.0m, impact 25g (IEC 60068-2-27), vibration 2.5g (IEC60068-2-6)
IP54
UN38.3/DGM/CE/FCC/RoHS/UKCA
1100
520
280*165*120
13 languages (English, Traditional Chinese, Korean, Japanese, French, Spanish, Italian, Portuguese, German, Polish, Russian, Hungarian, Turkish)
Connect to PC for updates

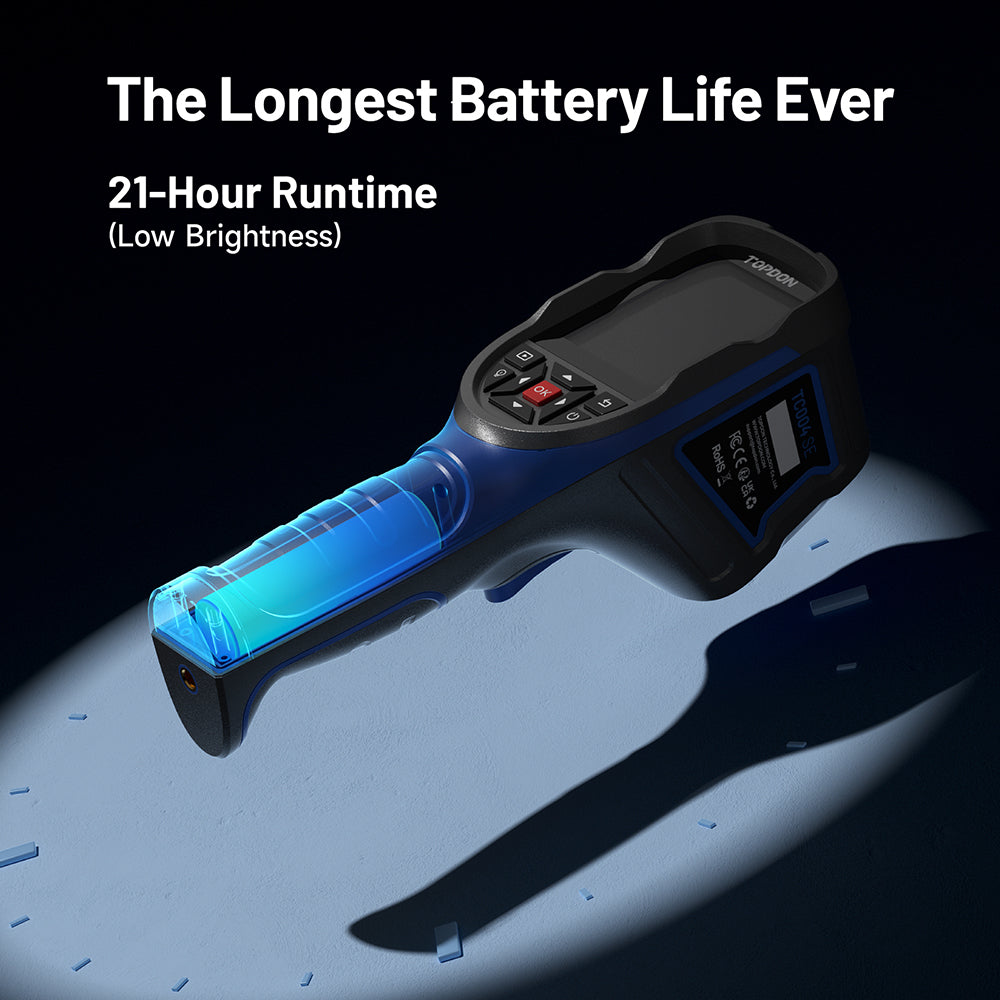

All Day Battery Life

It offers up to 21 hours of continuous use at the lowest screen brightness and 16 hours at the highest screen brightness, giving you peace of mind during extended tasks. Imagine working just 3 hours a day—this means you can go a whole week without recharging.

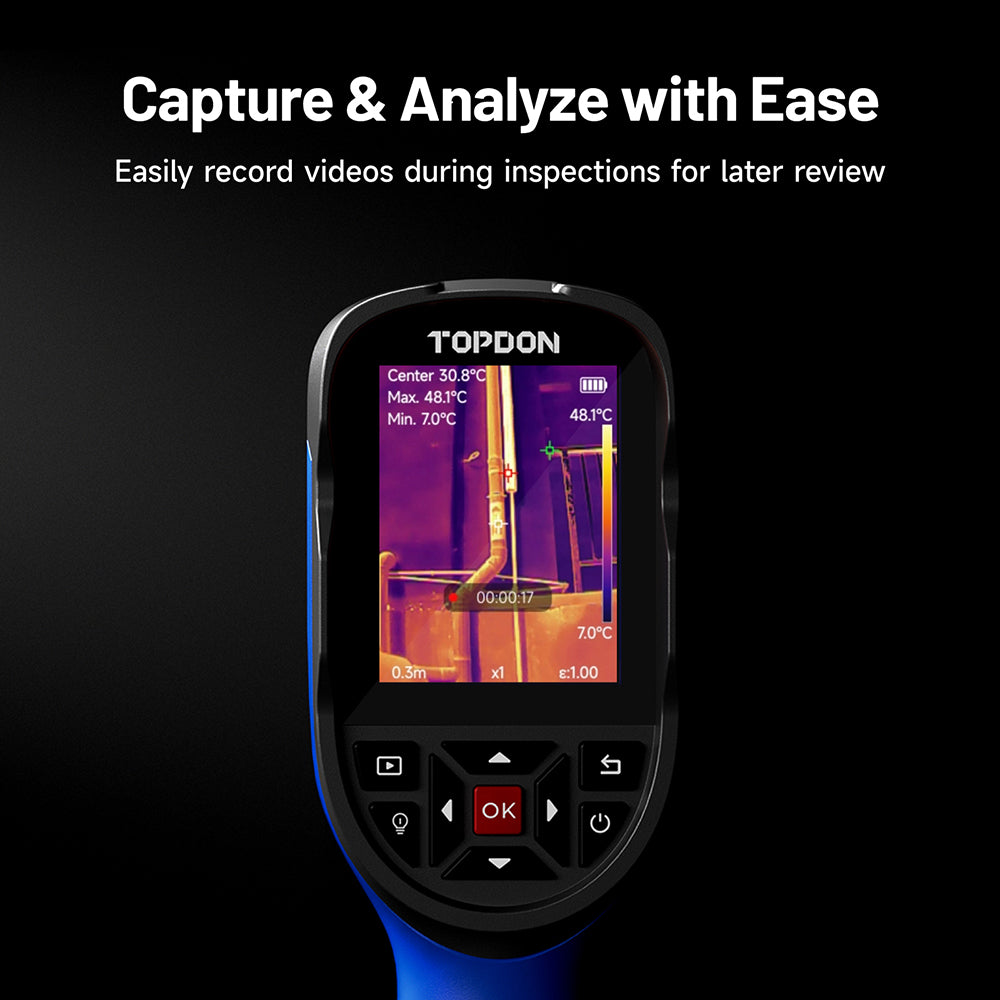

Video Capture

Easily record videos during inspections, enabling quick and accurate documentation of your findings for later review.

Built in 32GB Storage

With 32GB built-in eMMC storage, you can save up to 160,000 high-quality thermal images, ensuring ample space to document and review inspection findings during long-term projects.

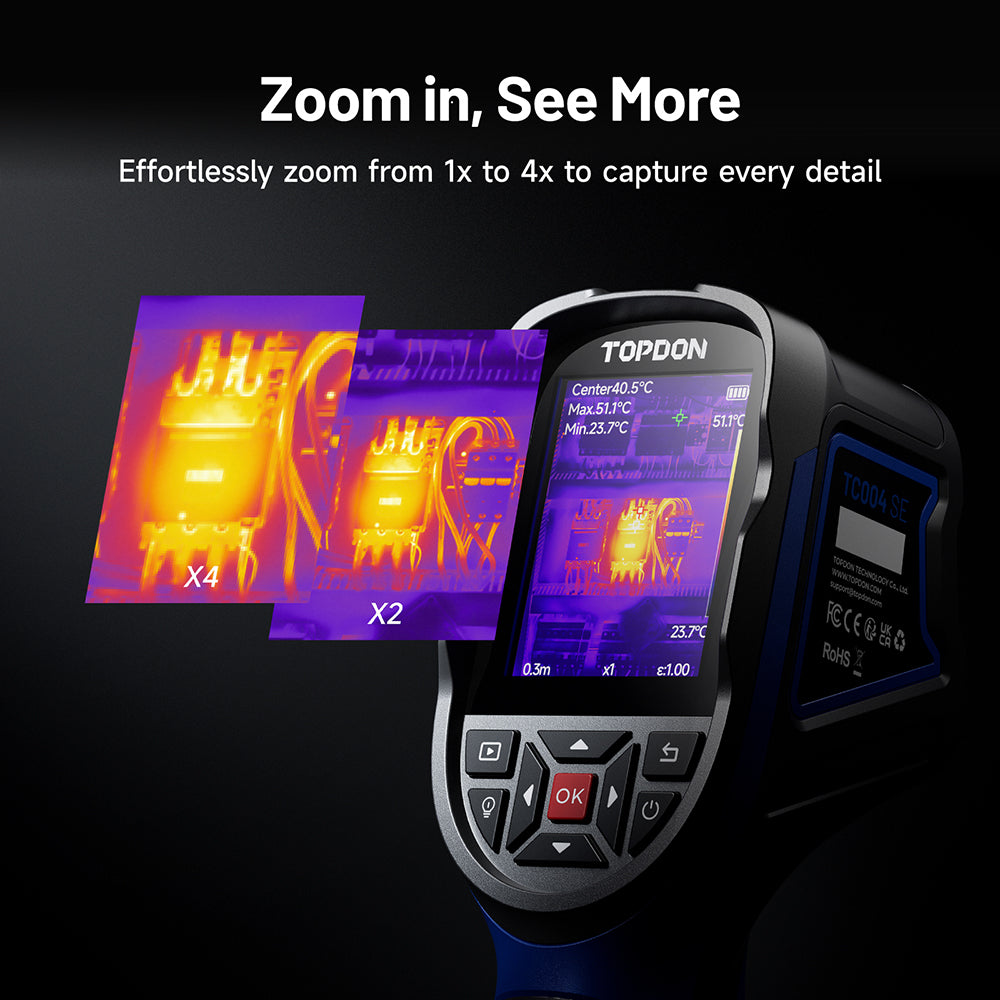

4x Digital Zoom

Effortlessly switch between 1x, 2x, and 4x digital zoom to capture every detail, whether inspecting intricate components up close or surveying larger areas from a distance.

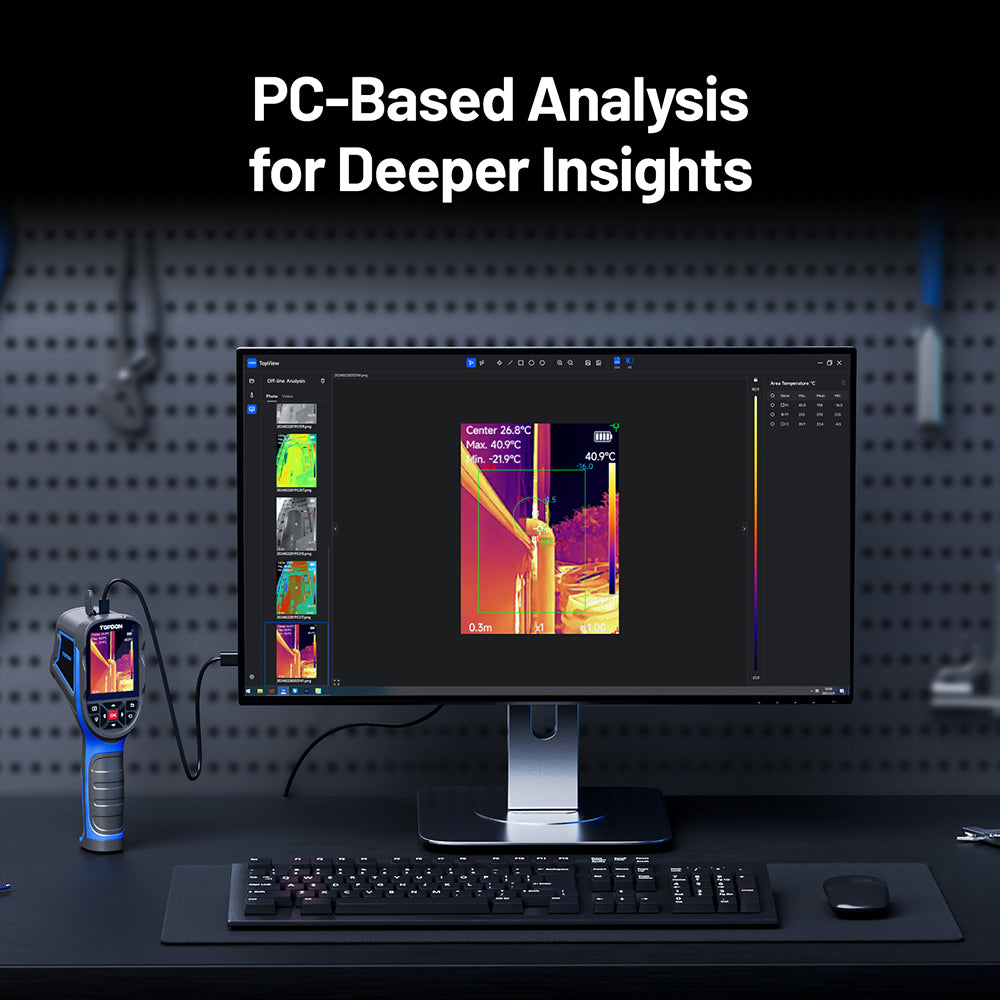

PC Image Analysis

Easily project thermal images to your PC for detailed temperature analysis. Compare temp differences, highlight hot and cold spots, and analyze thermal images in flexible ways (dot, line, plane).

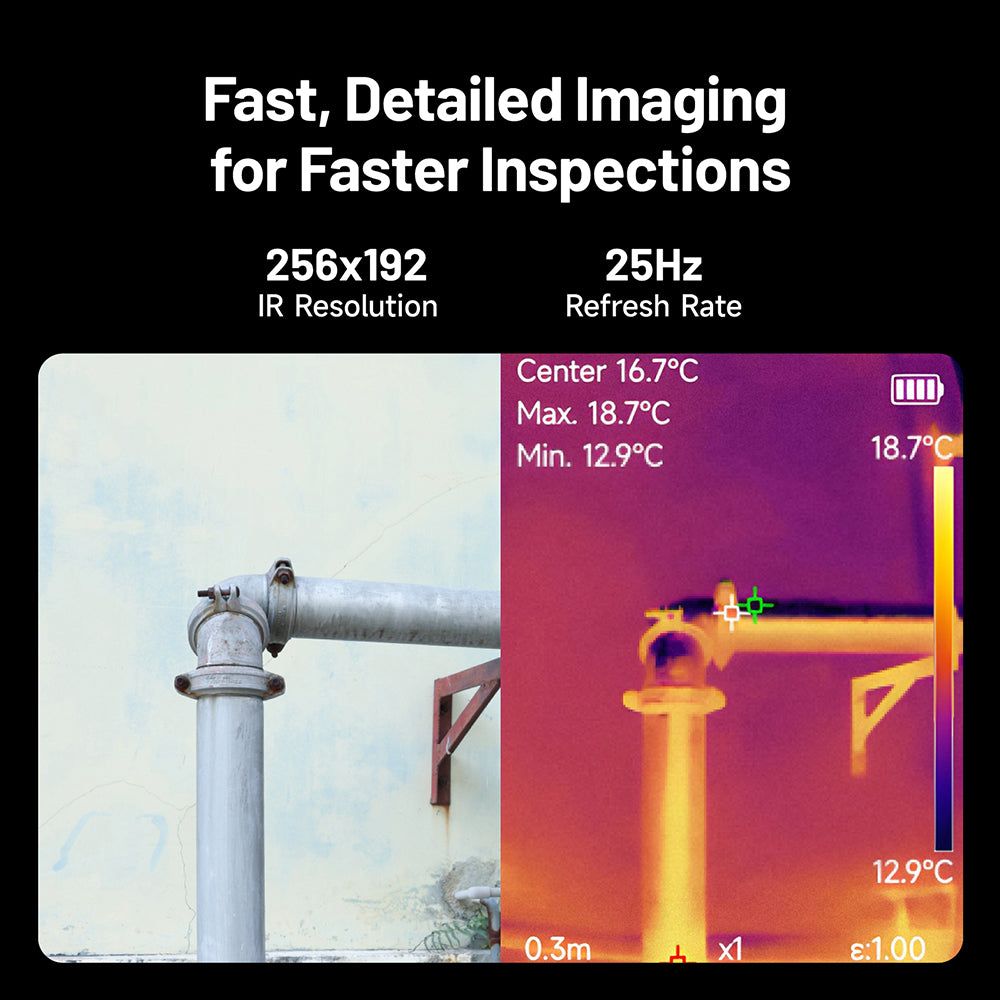

256x192 Resolution, 25Hz Refresh Rate

A 256x192 IR resolution and 25Hz refresh rate provide fluid & clear thermal visuals to help you quickly spot and analyze issues in power, electrical, or building inspections.

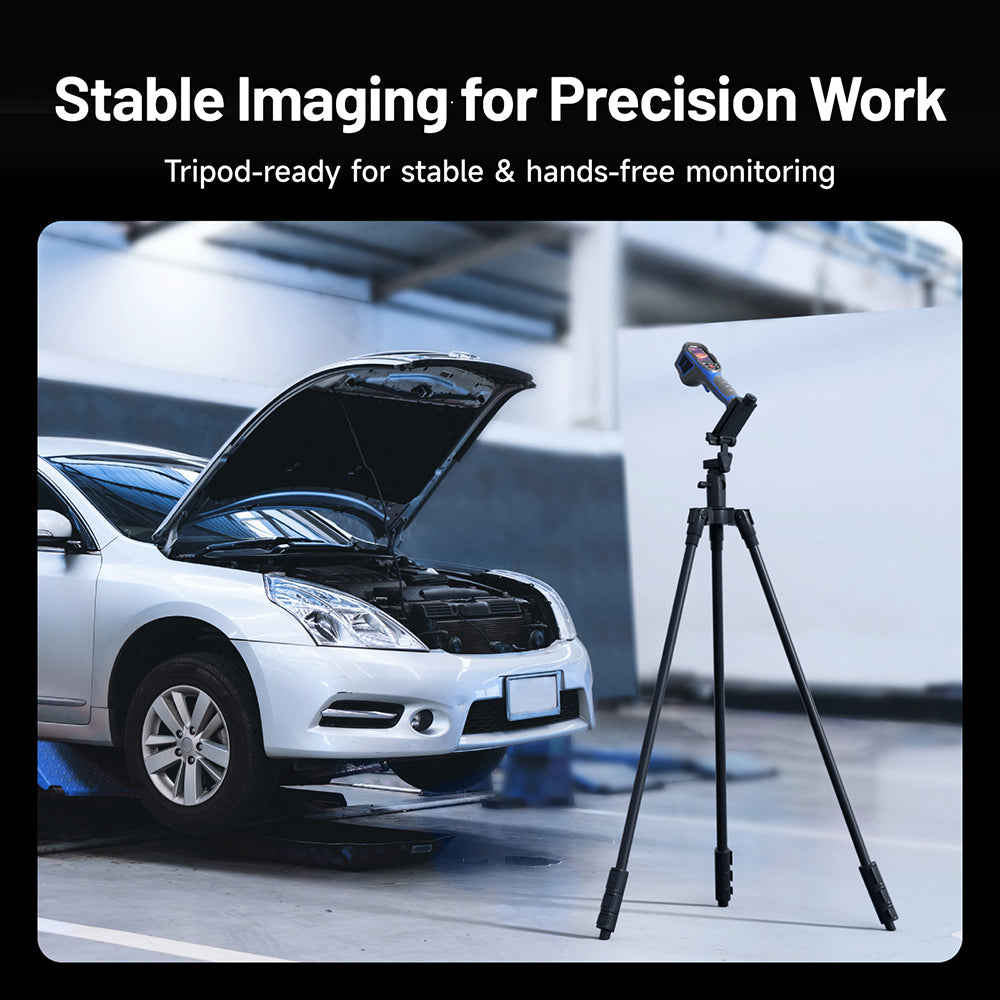

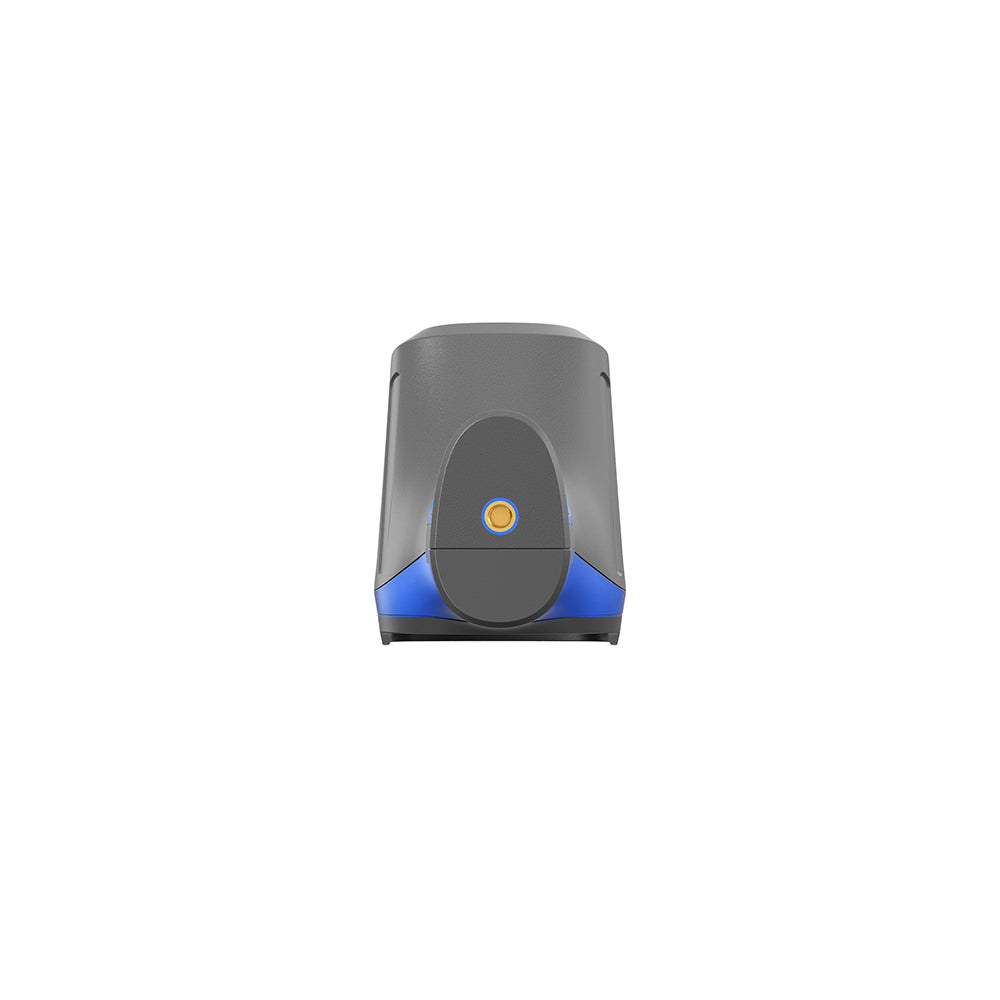

1/4-20 Screw Mount

With a built-in 1/4-20 screw hole, easily mount the device on a tripod for stable, hands-free monitoring during extended use - ideal for equipment checks and lab tests.

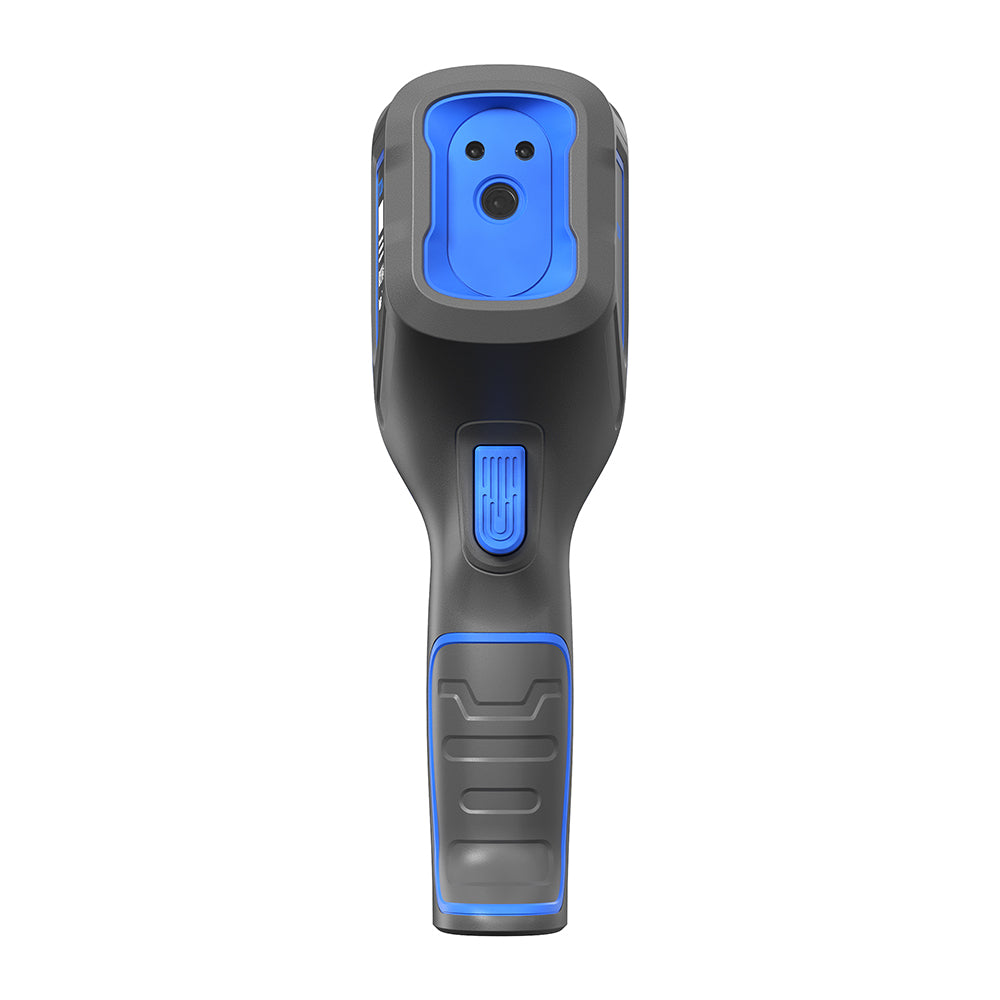

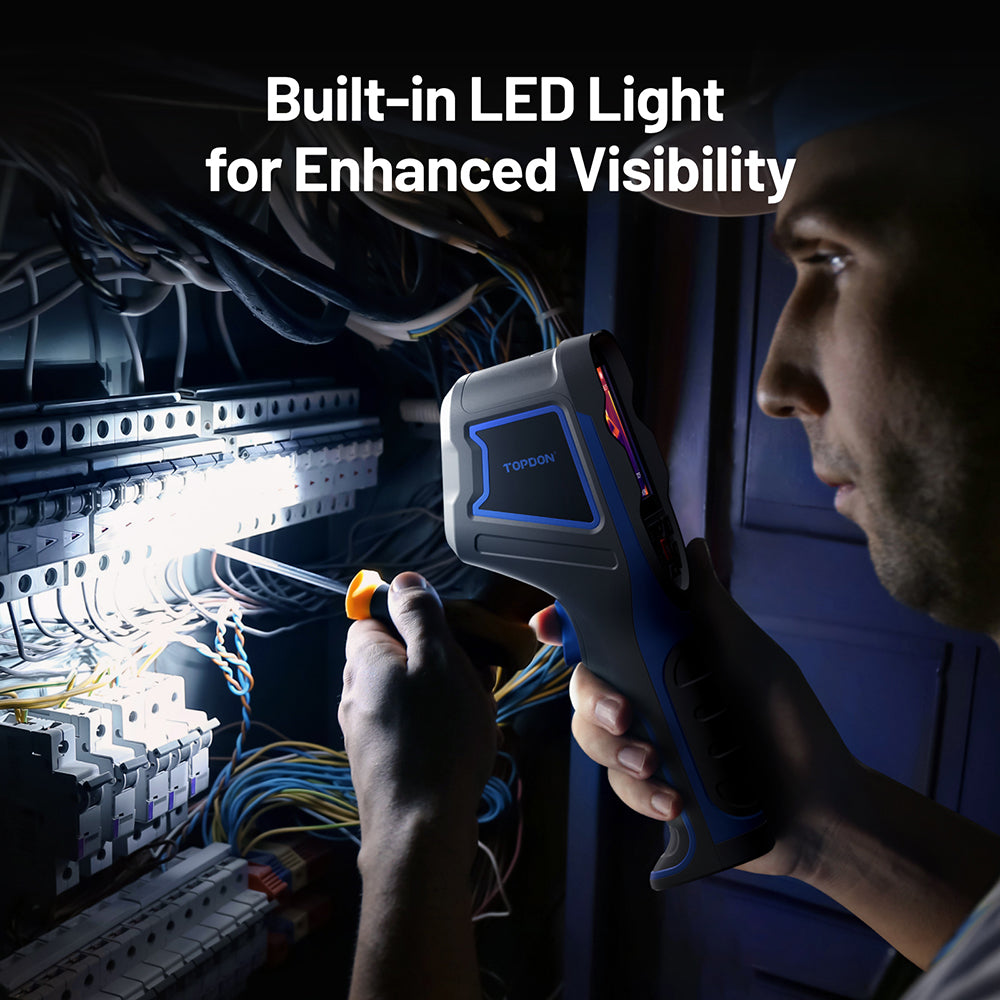

Built-in LED Light

The dual LED flashlight lets you work in low-light conditions and inspect hard-to-reach areas without carrying additional equipment.

Hardware
System
Linux
Operating System
Standalone use/Windows devices
Battery Capacity
5300mAh
Display Screen
2.8 inch, 320x240 screen
Operating Voltage
5V
Charging Time
4h
Battery Life
16h (High brightness) 21h (Low brightness)
Storage
32 GB
LED Flashlight
Imaging
Calibration Temperature Measurement Distance
0.2m~4m
Identification Distance
0.1~40m
Recognition Distance
40~80m
Detection Distance
80~320m
Measurement Accuracy
±2°C or ±2%
Infrared Light Resolution
256x192
Focal Range
3.2mm
FOV
56°×42°
Spectral Range
8 – 14μm
NETD
<40mK
Temperature Resolution
0.1℃
Frame Rate
25Hz
AI Algorithm
Image Algorithm
Functions
Measurement Range
-20 to 450 °C (-4 to 842℉)
Professional Function
NA
Digital Zoom
1x/2x/4x
Image Modes
Thermal Imaging
Measuring Modes
Center spot/hot spot/cold spot
Video Recording
Video Transfer via USB
WIFI
PC-Based Analysis Software
Supports image analysis with PC
Visible Light Camera Lens
Pseudo Color Bar
10 colors (iron red, white hot, black hot, arctic, rainbow, red hot, medical, jungle, golden red, shimmer, aureate)
High/low temperature alarms
Automatic Power-off Time
5 mins, 10 mins, 20 mins, Off
Temperature Units
Celsius, Fahrenheit, Kelvin
Other
Operating Temperature
-10°C to +50°C
Tripod Screw Hole
Drop, Impact, and Vibration
2.0m, impact 25g (IEC 60068-2-27), vibration 2.5g (IEC60068-2-6)
IP Rating
IP54
Certifications
UN38.3/DGM/CE/FCC/RoHS/UKCA
Gross Weight (g)
1100
Device Weight (g)
520
Package Size (mm)
280*165*120
Languages Supported
13 languages (English, Traditional Chinese, Korean, Japanese, French, Spanish, Italian, Portuguese, German, Polish, Russian, Hungarian, Turkish)
Updates
Connect to PC for updates
TC004 SE Thermal Camera
USB Cable
Carrying Bag
User Manual
Power Adapter
