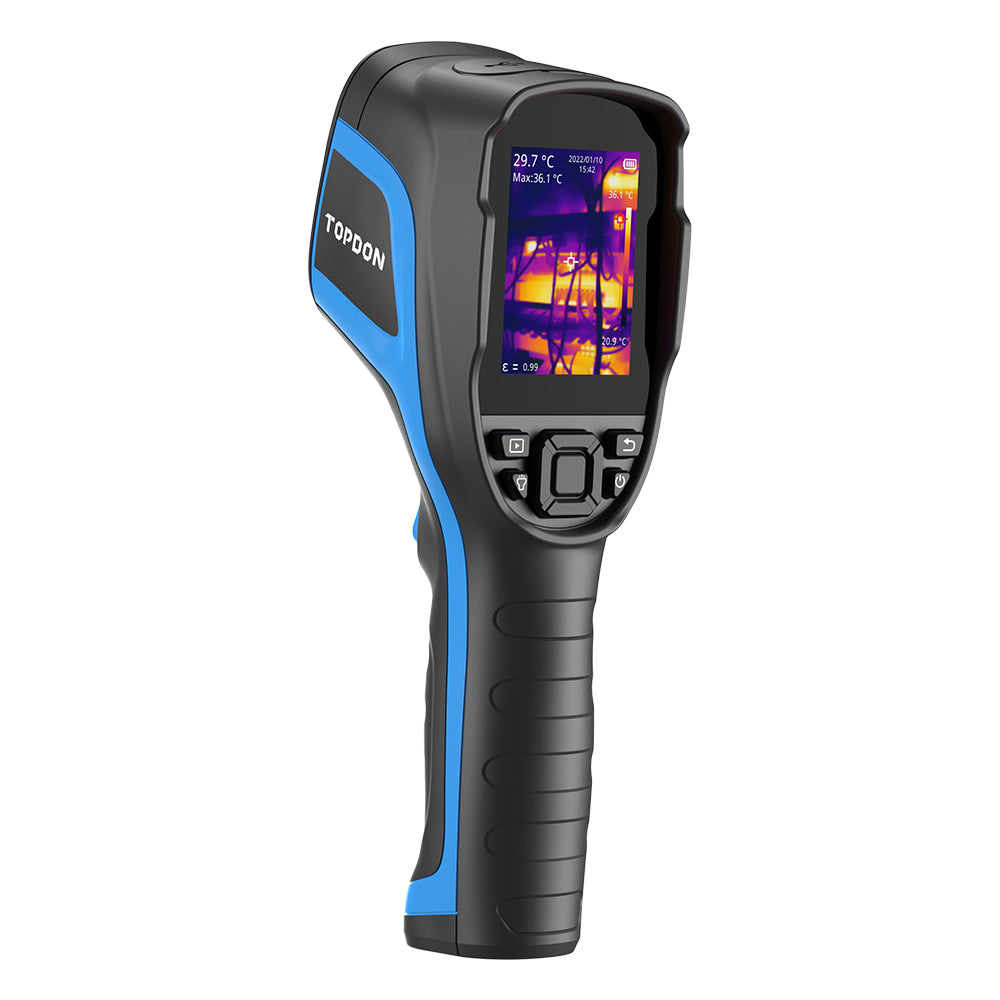

Handheld Thermal Imaging Camera 256x192 Resolution

The TC004 is a handheld thermal camera that measures a wide range of temperatures, from -20°C to 350°C (-4°F to +662°F), and offers a 12-hour runtime. The high-resolution 256*192 pixel infrared camera allows you to say goodbye to blurry images. The tool is ready for analysis with the standalone and the PC modes, enabling users to project and upload images from the TC to their PC.

  • Have questions? Ask an expert
View full details
4.0
Skip to product information
Features
  • High Resolution & Thermal Sensitivity
  • Three Measurement Modes & Auto-Detection
  • Wide FOV
  • Wide Measurement Range & Accuracy
  • PC Image Analysis and Instant Projection
  • One-Day Runtime
  • Built-in Fill LED Light
  • Compact and Solid Design
Learn More
Warranty & Updates
  • 1 Year Warranty
  • WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
Hardware
System
Operating System
Battery Capacity
Display Screen
Operating Voltage
Charging Time
Battery Life
Storage
LED Flashlight
Imaging
Calibration Temperature Measurement Distance
Identification Distance
Recognition Distance
Detection Distance
Measurement Accuracy
Infrared Light Resolution
Focal Range
FOV
Spectral Range
NETD
Temperature Resolution
Frame Rate
AI Algorithm
Image Algorithm
Functions
Measurement Range
Professional Function
Digital Zoom
Image Modes
Measuring Modes
Video Recording
Video Transfer via USB
WIFI
PC-Based Analysis Software
Visible Light Camera Lens
Pseudo Color Bar
High/low temperature alarms
Automatic Power-off Time
Temperature Units
Other
Operating Temperature
Tripod Screw Hole
Drop, Impact, and Vibration
IP Rating
Certifications
Gross Weight (g)
Device Weight (g)
Package Size (mm)
Languages Supported
Updates

Linux
Standalone use/Windows devices
5000mAh
2.8 inch, 320x240 screen
5V
4h
12h
2GB RAM+16GB TF card
True

0.2m~5m
0.1~40m
40~80m
80~320m
±2°C or ±2%
256x192
3.2mm
52.5°X39.5°
8 – 14μm
<40mK
0.1℃
20Hz

-20 to 350℃ (-4 to 662℉)
Industrial
1x/2x/4x
Thermal Imaging
Center spot/hot spot/cold spot
Supports image analysis with PC
5 colors (white hot, black hot, iron, rainbow,dark red)
5 mins, 10 mins, 20 mins, Off
Celsius, Fahrenheit, Kelvin, Distance Unit

-10°C to +50°C
2.0m, impact 25g (IEC 60068-2-27), vibration 2.5g (IEC60068-2-6)
IP54
UN38.3/DGM/CE/FCC/RoHS/UKCA
1100
520
280*165*120
13 languages (English, Traditional Chinese, Korean, Japanese, French, Spanish, Italian, Portuguese, German, Polish, Russian, Hungarian, Turkish)
Connect to PC for updates

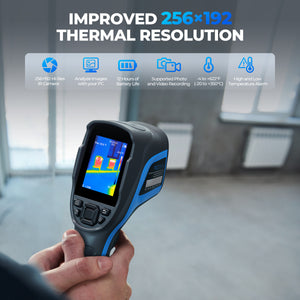

High Resolution & Thermal Sensitivity

• The TC004 features a high-resolution thermal camera with a resolution of 256x192. This allows users to capture more details and say goodbye to blurry images.
• A high thermal sensitivity of 0.05℃ allows the TC004 to distinguish between tiny temperature differences.

Three Measurement Modes & Auto-Detection

• The TC004 has three different measurements to detect center, hot and cold spots.
• The automatic detection feature allows users view temperature differences more visually.

Wide FOV

The TC004 also features a wide 56° FOV for to easily capture more objects in view. There is also no need to adjust focal length.

Wide Measurement Range & Accuracy

• The TC004 features a wide temperature measurement range of -20℃ - +350℃. It can also measure temperatures with ±2℃ accuracy for precise temperature measurements.
• NETD of this high-precision infrared sensor is less than 40mK and thermal imaging resolution displays down to 0.1℃. The tool's margin of error is less than 2%. This is to ensure the upmost accurate thermal readings.

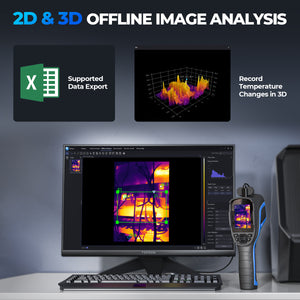

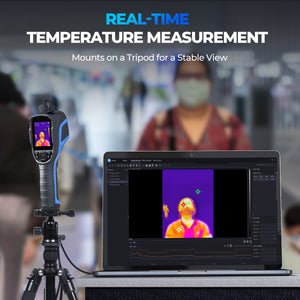

PC Image Analysis and Instant Projection

Professional analysis software allows users to easily save and share diagnostic data on a PC. The TC004 also supports screen projection on a PC as well.

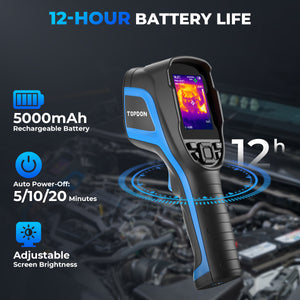

One-Day Runtime

A powerful integrated battery allows the TC004 to have a 12-hour runtime.

Built-in Fill LED Light

A built-in LED light allows users to record thermal readings without an additional light source.

Compact and Solid Design

IP54 rated for protection against water and dust and 2m drop proof allows you to be more carefree while using the device.

Hardware
System
Linux
Operating System
Standalone use/Windows devices
Battery Capacity
5000mAh
Display Screen
2.8 inch, 320x240 screen
Operating Voltage
5V
Charging Time
4h
Battery Life
12h
Storage
2GB RAM+16GB TF card
LED Flashlight
Imaging
Calibration Temperature Measurement Distance
0.2m~5m
Identification Distance
0.1~40m
Recognition Distance
40~80m
Detection Distance
80~320m
Measurement Accuracy
±2°C or ±2%
Infrared Light Resolution
256x192
Focal Range
3.2mm
FOV
52.5°X39.5°
Spectral Range
8 – 14μm
NETD
<40mK
Temperature Resolution
0.1℃
Frame Rate
20Hz
AI Algorithm
Image Algorithm
Functions
Measurement Range
-20 to 350℃ (-4 to 662℉)
Professional Function
Industrial
Digital Zoom
1x/2x/4x
Image Modes
Thermal Imaging
Measuring Modes
Center spot/hot spot/cold spot

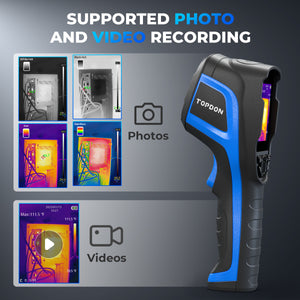

Video Recording
Video Transfer via USB
WIFI
PC-Based Analysis Software
Supports image analysis with PC
Visible Light Camera Lens
Pseudo Color Bar
5 colors (white hot, black hot, iron, rainbow,dark red)
High/low temperature alarms
Automatic Power-off Time
5 mins, 10 mins, 20 mins, Off
Temperature Units
Celsius, Fahrenheit, Kelvin, Distance Unit
Other
Operating Temperature
-10°C to +50°C
Tripod Screw Hole
Drop, Impact, and Vibration
2.0m, impact 25g (IEC 60068-2-27), vibration 2.5g (IEC60068-2-6)
IP Rating
IP54
Certifications
UN38.3/DGM/CE/FCC/RoHS/UKCA
Gross Weight (g)
1100
Device Weight (g)
520
Package Size (mm)
280*165*120
Languages Supported
13 languages (English, Traditional Chinese, Korean, Japanese, French, Spanish, Italian, Portuguese, German, Polish, Russian, Hungarian, Turkish)
Updates
Connect to PC for updates

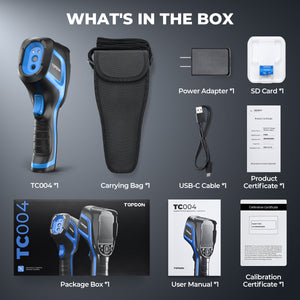

TC004 Thermal Camera
16GB TF Card
USB Cable
Carrying Bag
User Manual
5V 2A Power Adapter
